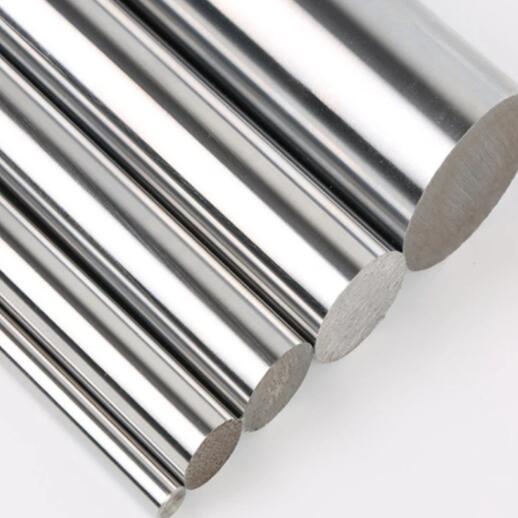

| Product Name | AISI H10 SKD6 D2 D3 440c 420ss P20 P20+Ni 1.2379 Round Bar Steel |
| Round Bar | Diameter 6-400mm X Length 3000-9000mm |
| Plate | Thickness 6-400mm X Width 100-1500mm X Length 2000 |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled |
| Surface Treatment | Clean, blasting and painting according to customer requirement |
| Thickness tolerance | ±0.1mm |
| Material | SKD11 01/SKS3/1.2510 DC53 D65 D3M D3/1.2080 D2/1.2379 D11 D12 H10 H11 H13 H21 |
| Application | 1.Use to create a large cross-section and complex shape of the cold die, and a variety of measuring tools.
2.Commonly used in punching die, stamping die, bending die, drawing die, punch punch, fine mold, and other metal molds.
|
| MOQ | 1tons.We also can accept sample order. |
| Shipment time | Within 15-20 workdays after receiving deposit or L/C |
| Export packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Capacity | 250,000 tons/year |
A2 |
D2 | H13 | O1 | M2 | M42 | S7 | W1 | A6 | |
| C | 0.90/1.05 | 1.50/1.60 | 0.35/0.45 | 0.90/1.00 | 0.85/0.95 | 1.10 | 0.45/0.55 | 0.95/1.05 | 0.65/0.75 |
| Cr | 4.90/5.30 | 11.50/12.00 | 4.75/5.50 | 0.40/0.50 | 4.00 | 3.50/4.25 | 3.10/3.40 | 0.15 | 0.90/1.20 |
| Mo | 0.90/1.10 | 0.70/0.80 | 1.10/1.75 | 0.40/0.60 | 5.00 | 9.00/10.00 | 1.30/1.60 | 0.10 max | 0.90/1.40 |
| W | / | / | / | / | 5.50/6.50 | 5.50/6.50 | / | 0.15 max | / |
| Mn | 0.40/0.60 | 0.20/0.40 | 0.20/0.50 | 1.00/1.20 | 1.3 | 0.15/0.35 | 0.50/0.70 | 0.30/0.40 | 1.80/2.50 |
| V | 0.15/0.20 | 0.80/1.00 | 0.80/1.20 | 0.15/0.30 | 2.00 | 0.95/1.35 | 0.20/0.30 | 0.10 max | / |
| Si | 0.20/0.35 | 0.20/0.60 | 0.80/1.20 | 0.40/0.50 | 0.20/0.40 | 0.15/0.65 | 0.20/0.40 | 0.10/0.25 | 1.50 |
| P | 0.025 max | 0.025 max | 0.030 max | 0.030 max | 0.030 max | / | 0.025 max | 0.025 max | 0.030 max |
| S | 0.025 max | 0.025 max | 0.030 max | 0.030 max | 0.030 max | / | 0.030 max | 0.025 max | 0.030 max |
| Co | / | / | / | / | / | 8.00/10.00 | / | / | / |
| Ni | / | / | / | / | / | 0.30 max | / | / | / |
