Name: Blind Flange
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

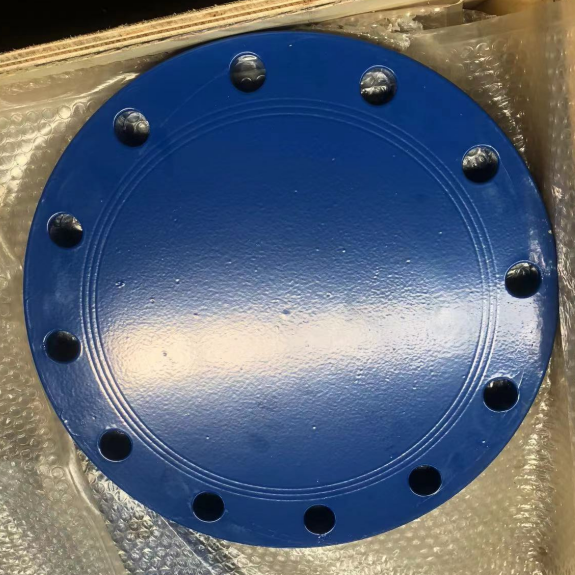

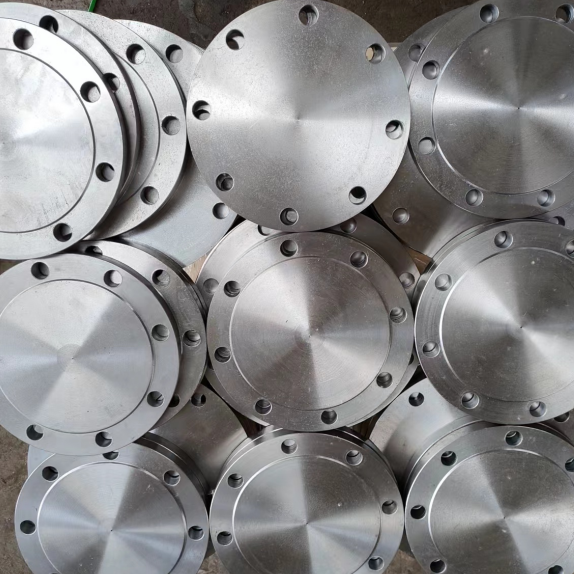

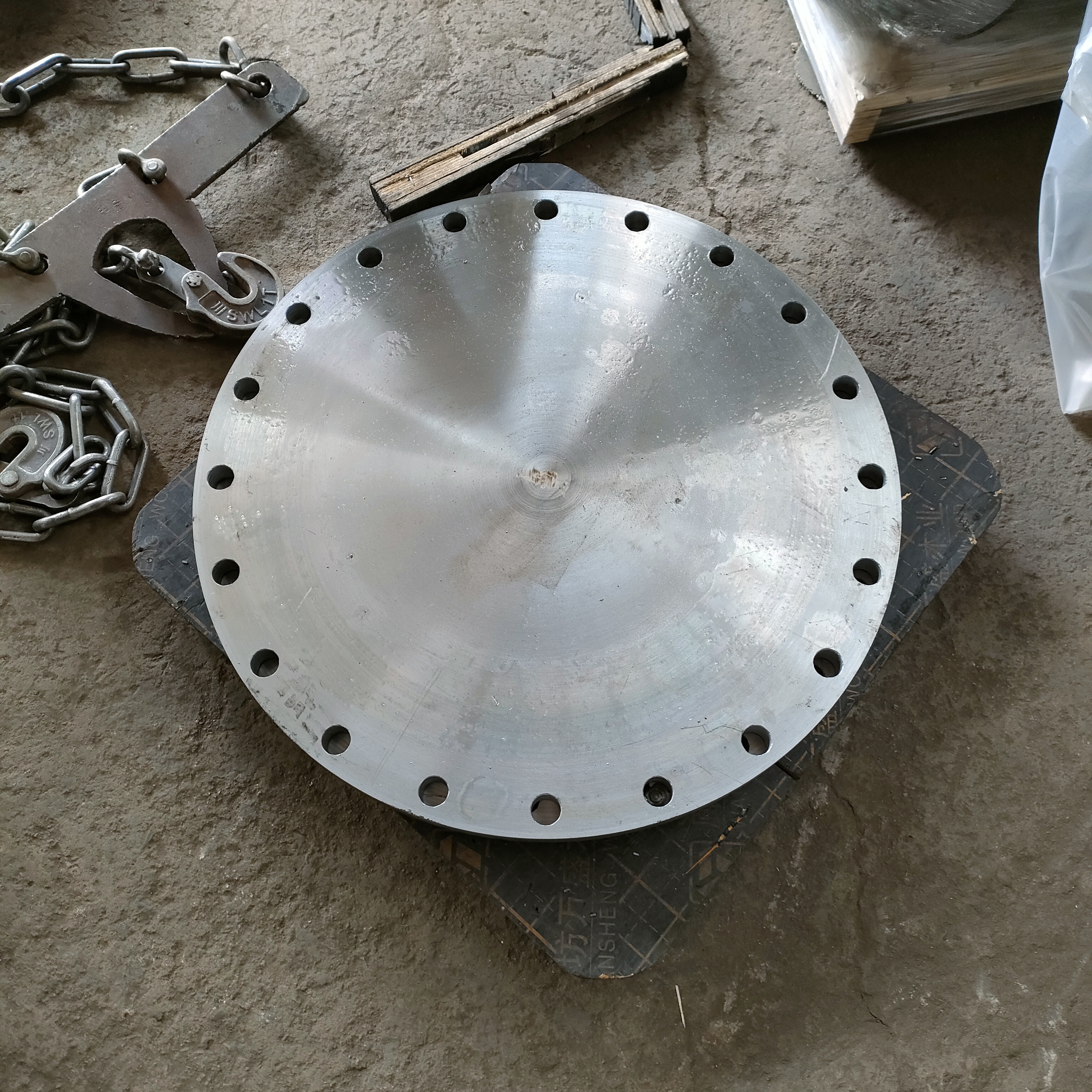

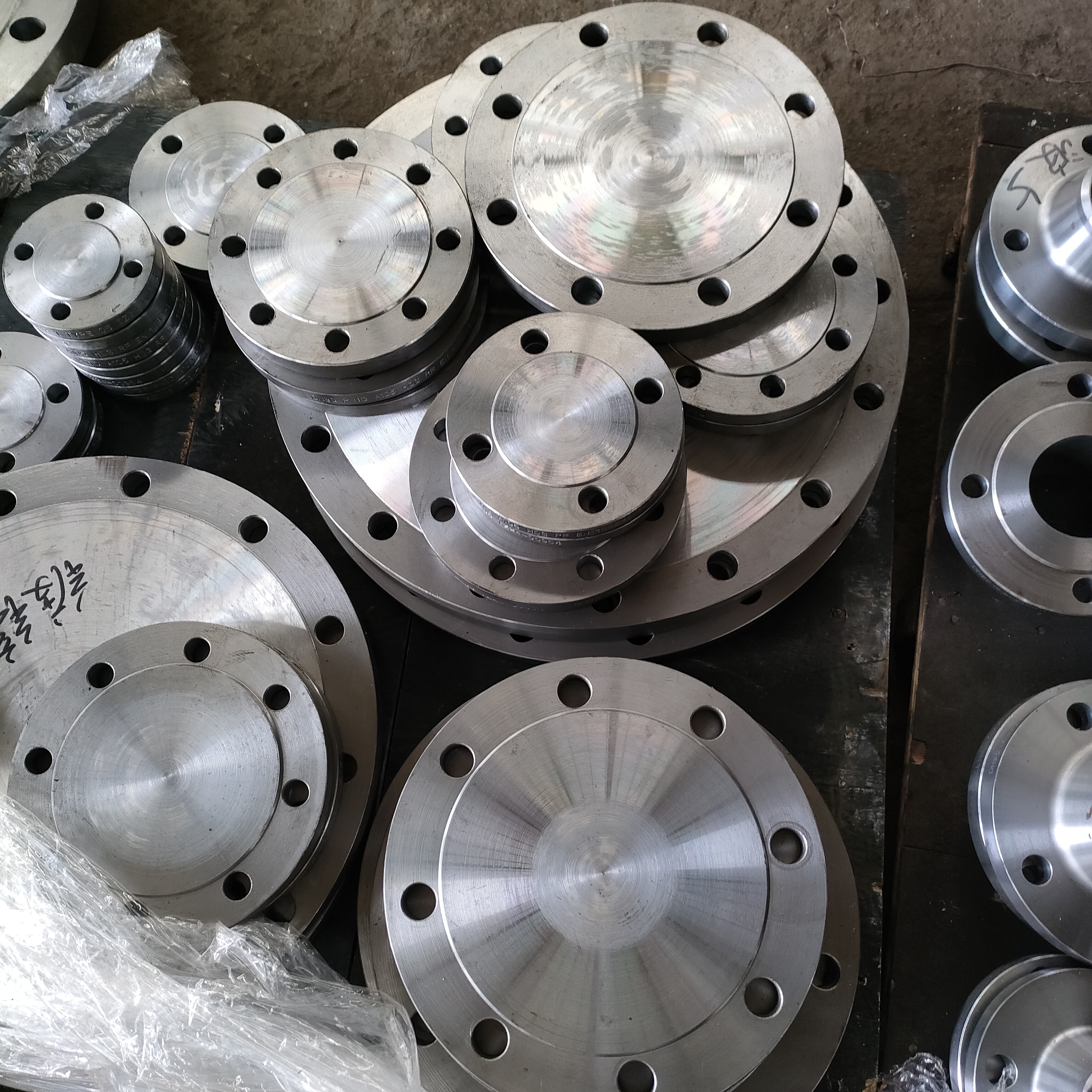

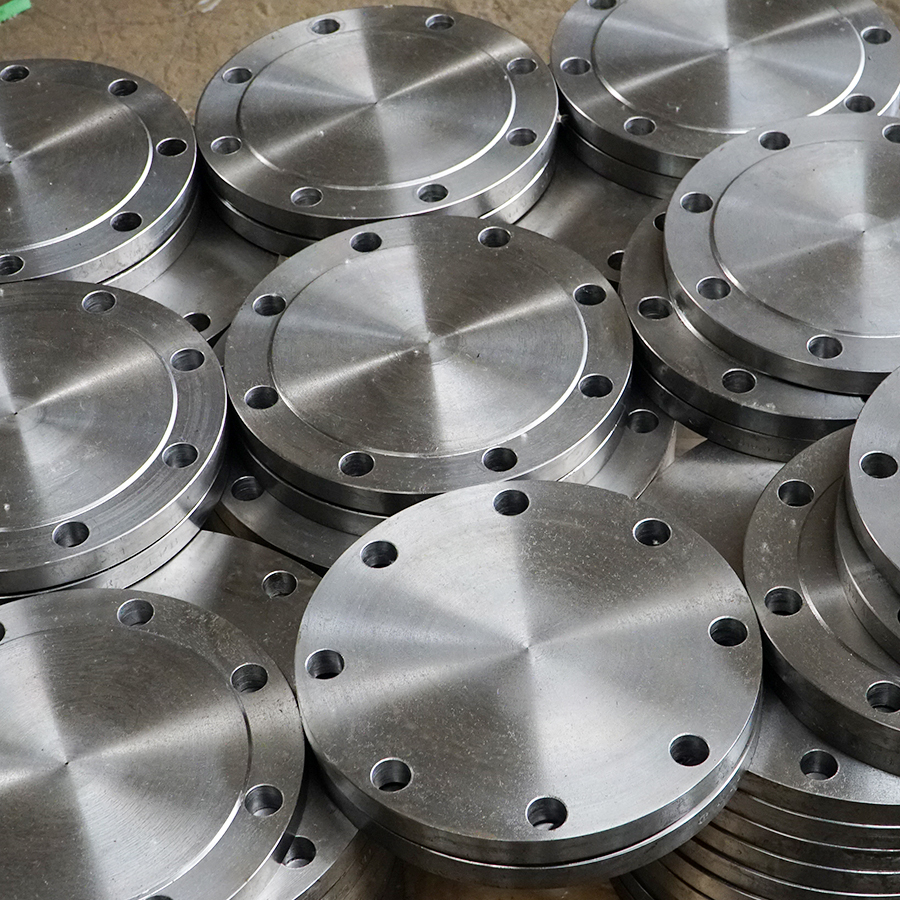

Blind Flange

Blind flange is a flange without a hole in the middle, used to seal the pipe opening. Its function is the same as that of the head and pipe cap, except that the blind flange seal is a detachable sealing device, while the head seal is not intended to be opened again.

Description

Blind Flange Supplier,Blind Flange Stockist In China

　　Blind flange is a flange without a hole in the middle, used to seal the pipe opening. Its function is the same as that of the head and pipe cap, except that the blind flange seal is a detachable sealing device, while the head seal is not intended to be opened again. There are many types of sealing surfaces, including flat surface, convex surface, concave-convex surface, tongue-and-groove surface and ring connection surface.

Product Description

Type	Blind Flange(BL Flange)
Technics	Forged,Cast.
Size	1/2"-80"(DN15-DN2000)
Pressure	150 lbs - 2500lbs PN6-PN250 0.6MPa-32MPa 5K-30K
Standard	EN,DIN,UNI,BS,NF,ANSI,ASME,JIS,KS,API,MSS DIN:DIN2527,DIN2566,DIN2573,DIN2576,DIN2641,DIN2642,DIN2655,DIN2656,DIN2627,DIN2628,DIN2629,DIN 2631, ANSI:ANSI B16.5,ANSI B16.47,MSS SP44,ANSI B16.36,ANSI B16.48 BS4504, BS1560, BS10 UNI:2276 2277 2278 6084 6089 6090 2544 2282 6091-6093 JIS
Material	Stainless steel: ASTM A182 F1, F5, F9, F22, F91, 310/F304/304L/F316/F316L, F321, F347.
Surface treatment	Galvanized(hot,cold),varnish Method rust oil Plastic spraying
Application Fields	Chemical Industry /Petroleum Industry /Power Industry/Metallurgical Industry Building Industry /Ship-building Industry

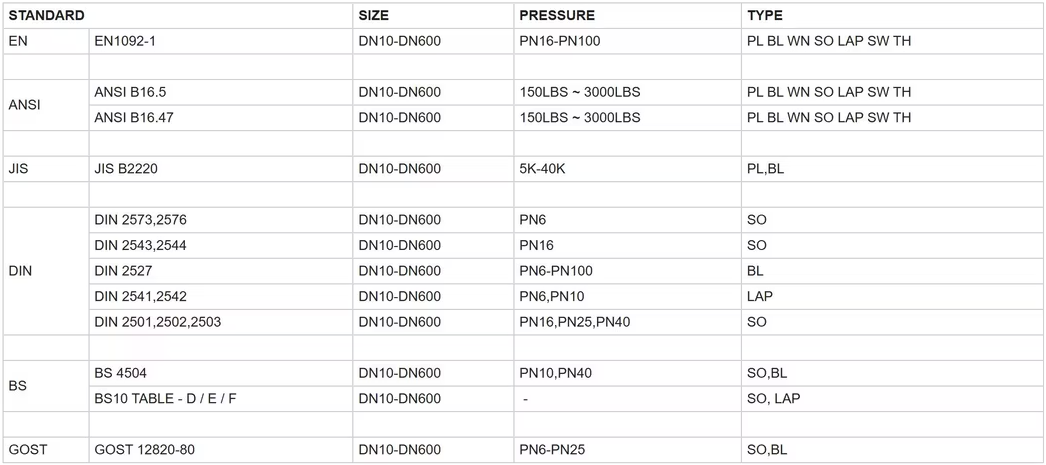

Blind Flange Standard

　　Flanges are used in pairs, threaded flanges can be used for low pressure pipes, welded flanges are used for pressures above 4 kg. Put a gasket between the two flanges and bolt them down. Flanges at different pressures have different thicknesses, and they use different bolts. Pumps and valves, when connected to pipes, are also made into the corresponding flange shape, also known as flange connection.

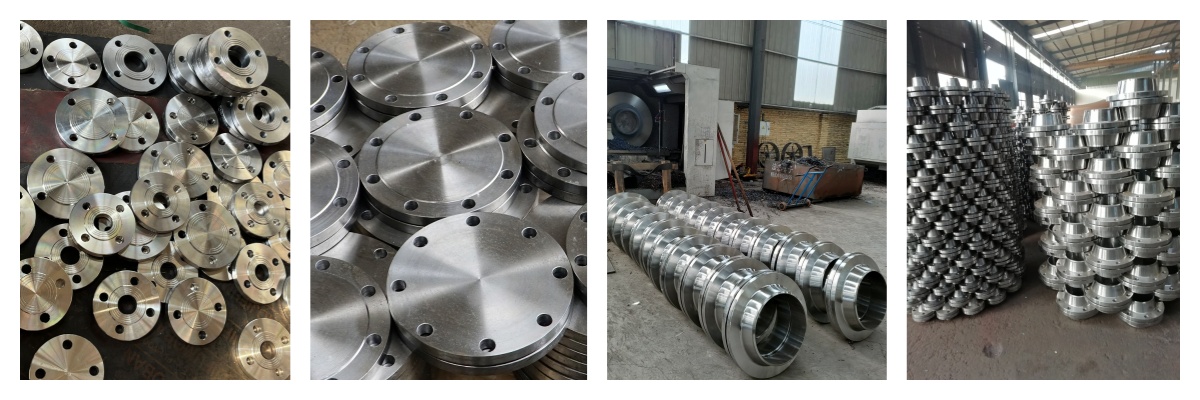

Product Display

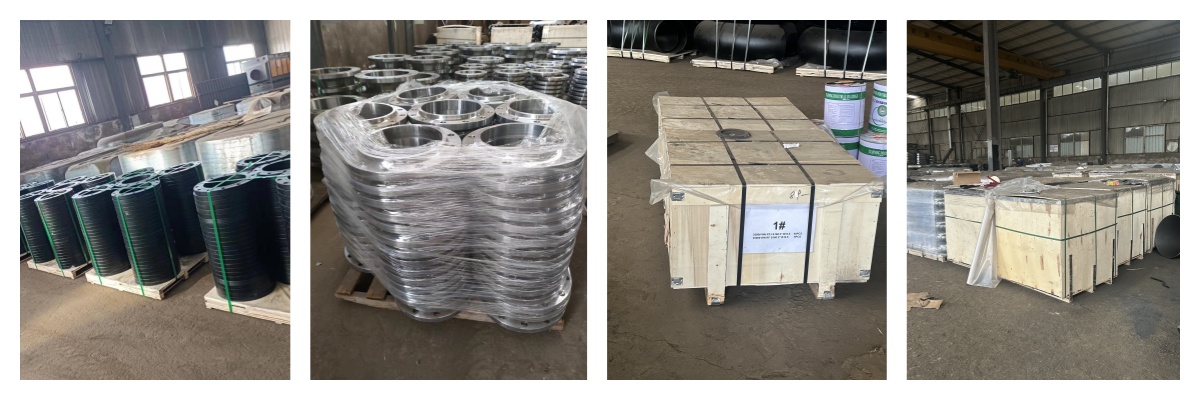

Package

　　Shengtian Group strictly follows the ISO9001 quality management system to produce all kinds of flanges with reliable quality and reasonable price. In addition, we also provide free samples and three-year quality guarantee, and can provide OEM service upon request. If you need to purchase flanges, please feel free to contact Shengtian Group at email: sale@stpipefitting.cn and phone: 0086-317-5298199. We look forward to cooperating with you.
