item
|

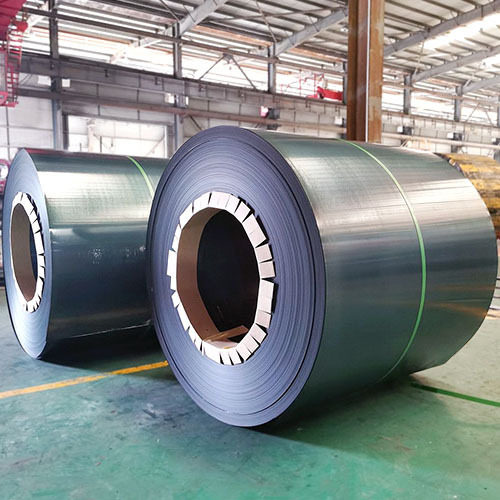

galvanized steel coil
|
|
Standard
|
AiSi, ASTM, bs, DIN, GB, JIS
|
|
Grade
|
Ordinary carbon structural steel Coil
|
|
Place of Origin
|
shandong china
|
|
Brand Name
|
Baorong
|
|
Type
|
Steel Coil
|
|
Technique
|
Hot /cold Rolled
|
|
Application
|
Wire mesh, roof panels, welded steel pipes, foundation bolts and rivets
|
|
Special Use
|
Ordinary carbon structural steel
|
|
Width
|
600-1250mm
|
|
Length
|
Requirement
|
|
Tolerance
|
±1%
|
|
Processing Service
|
Bending, Welding, Decoiling, Cutting, Punching
|
|
Product Name
|
Q235 Q255 Q275 Carbon steel cold rolled coil
|
|
standard
|
GB/T 700--2006
|
|
Chemical composition
|
C: 0.18 to 0.28 Mn: 0.40 to 0.70 Si: 0.30 or less S: ≤0.050 (grade A), ≤0.045 (grade B) P: 0.045 or less
|
|
Tensile strength
|
410-550MPa
|
|
Elongation (5/%)
|
≥24 (a≤16mm), ≥23 (a>16-40 mm) 22 or higher (a>40-60mm), ≥21 (a>60-100 - mm) P 20 (a>100-150mm), ≥19 (a>150 mm)
|
|
Cold bending test at 180°
|
D =2a (B=2a: 60mm), d=3a(B=2a: >60 ~ 100mm), D = 3.5 a, B = 2 a: & gt;100 ~ 200 mm) Where D is the bending diameter, B is the
specimen width, A is the steel thickness or diameter. |
|
Impact test
|
Temperature: 20ºC V type impact absorption energy (longitudinal) AK /J: ≥27
|
|
advantages
|
good strength, plasticity and toughness, good welding performance and cold and hot pressure working performance
|
|
application
|
Bolts, keys, rockers, shafts, tie rods and all kinds of section steels and steel plates for steel structure.
|
|
Delivery time
|
7-15 Days
|
