Name: Hot Rolled C Channel Steel Price S235jr S355jr A36 Ss400 Galvanized Steel Ss400 Q235 Channel Steel C
Brand: p.st.company
SKU: 00262
Availability: InStock
Rating: 5 (1 reviews)

Home > Channel Steel

Hot Rolled C Channel Steel Price S235jr S355jr A36 Ss400 Galvanized Steel Ss400 Q235 Channel Steel Channel Section Hot Rolled Steel U Beam Channel

Description

Basic Info.

Model NO.

S235jr S355jr A36 Ss400 Q235B Q345b St52

Length

5m, 6m7m, 9m, 11m, 12m, 15m

Material

A36, Q195, Q215, Q235B, Q345b, S235jr, S235, S355jr, S355

Technique

Hot Rolled, Cold Rolled

Height

50-300mm

Surface Treatment

Galvanized, Coated or Custom

Grade

Mild Steelcarbon Steelstainless Steel

Application

Structure Building, Construction

Unit

Ton

Size

50*37*4.5-400*104*14.5

Sample

Available

Model No.

S235jr/S235/S355jr/S355/Ss440/Sm400A/Sm400b

Product Name

Channel Steel

Transport Package

Standard Export Packing

Specification

Customized

Trademark

Origin

China

Production Capacity

5000000ton/Year

Product Description

Products:	U Channel Steel
Grade:	Q235B,Q345B
Type:	GB standard(10#-40#,10048mm--400102mm) JIS standard(5025mm--25090mm)
Length:	6m, 12m, Large quantities can be customized
Technique:	Hot rolled
Application:	Mainly used for building structure, vehicle manufacturing, and other industrial structure, channel steel is often used with i beam.
Payment Terms:	L/C or T/T

These sections are manufactured from S275JR grade steel and have excellent machinability and weldability. Our stocks are available in mill finish, red oxide, or Zinc finishes to offer a range of corrosion resistance properties to suit your project. To increase corrosion resistance mild steel is normally painted or galvanized after fabrication.
Mild steel channel is widely used in civil engineering and construction to support floor joists and to weight bear above window and door gaps where the structural load does not require an I beam.
If you are uncertain whether your project requires mild steel C channels or an I beam, we recommend you consult a structural engineer or other qualified professional.
Mild steel channel is supplied in lengths up to 6 meters long and can be easily cut, drilled, and machined. It is particularly suited to all methods of welding. Mild Steel Channel is produced to grade EN 10025-2 S275JR one of the most widely used steel specifications for general construction.

Nominal Size (mm)	Depth of Section (mm)	Flange Width (mm)	Flange Thickness (mm)	Web Depth (mm)	Web Thickness (mm)	Weight (kg/m)	Metres/ Tonne (m/t)	9m	10.5m	12m	13.5m	15m	16.5m	18m
100 x 50	100	50	6.70	87	4.20	8.33	120	✓		✓
125 x 65	125	65	7.50	110	4.70	11.90	84	✓		✓
150 x 75	150	75	9.50	131	6.00	17.70	57	✓	✓	✓	✓	✓	✓	✓
180 x 75	180	75	11.00	158	6.00	20.90	48	✓	✓	✓	✓	✓	✓	✓
200 x 75	200	75	12.00	176	6.00	22.90	44	✓	✓	✓	✓	✓	✓	✓
230 x 75	230	75	12.00	206	6.50	25.10	40	✓	✓	✓	✓	✓	✓	✓
250 x 90	250	90	15.00	220	8.00	35.50	28	✓	✓	✓	✓	✓	✓	✓
300 x 90	300	90	16.00	268	8.00	40.10	25	✓	✓	✓	✓	✓	✓	✓
380 x 100	380	100	17.50	345	10.00	55.20	18	✓	✓	✓	✓	✓	✓	✓
50 x 25	50	25				3.83	261	✓		✓

Standard Equivalent
China GB/T, YB	America ASTM	Japan JIS	Germany DIN EN	England BS EN	France NF EN	ISO	Korea KS	India IS
Q195	Grade B	SS330 SPHC	S185(1.0035)			E185 Fe(310)		D
Q215	Grade C CS Type B						SS330 (SS34)	Fe-330
Q235-A	Grade D	SS400	S235JR (1.0038)			E235 A E235 B E235 C E235 D	SS400 (SS41)
Q235-B			S235J0(1.0114)					Fe-410
Q235-C			S235J2(1.0117)
Q235-D			S235JR(1.0038)
Q275	SS Grade 40 (275 )	SS490	S275JR(1.0044) S275J0(1.0143) S275J2(1.0145)			E275 (Fe430)	SS490	Fe-490
Q345-A	Grade 50 (345)	SPFC590	E355(1.0060)			E355
Q345-B			S355JR(1.0045)
Q345-C			S355J0(1.0553)
Q345-D			S355J2(1.0577)
Q345-E			S355NL(1.0546)

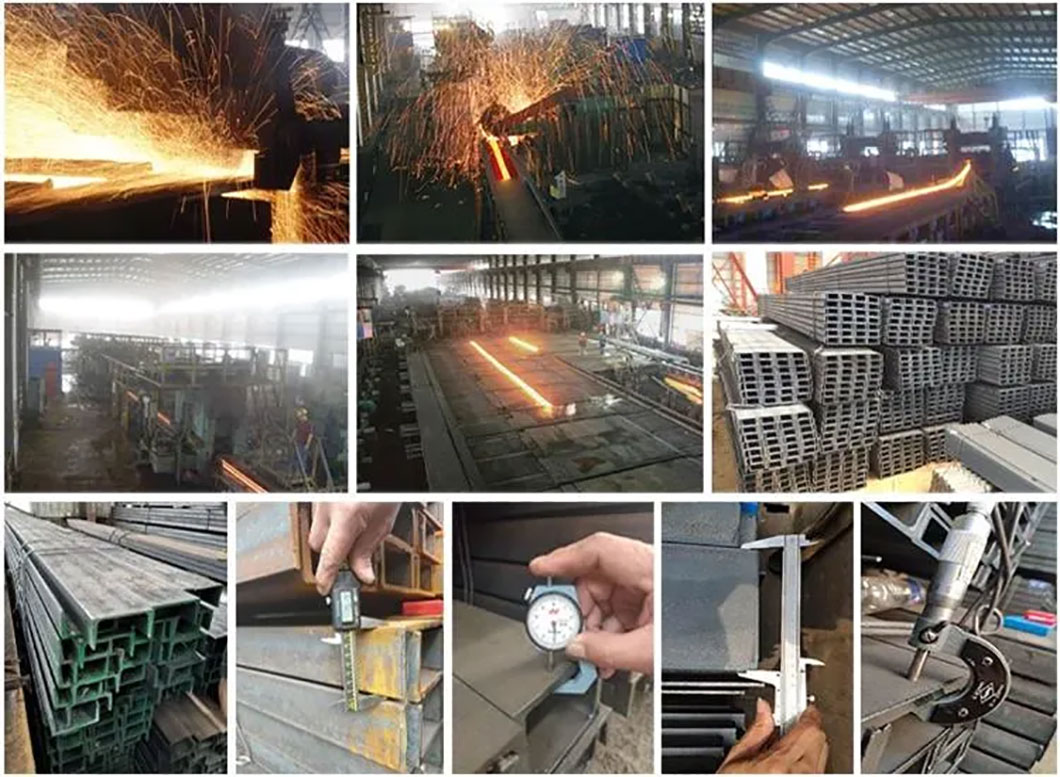

Production Process

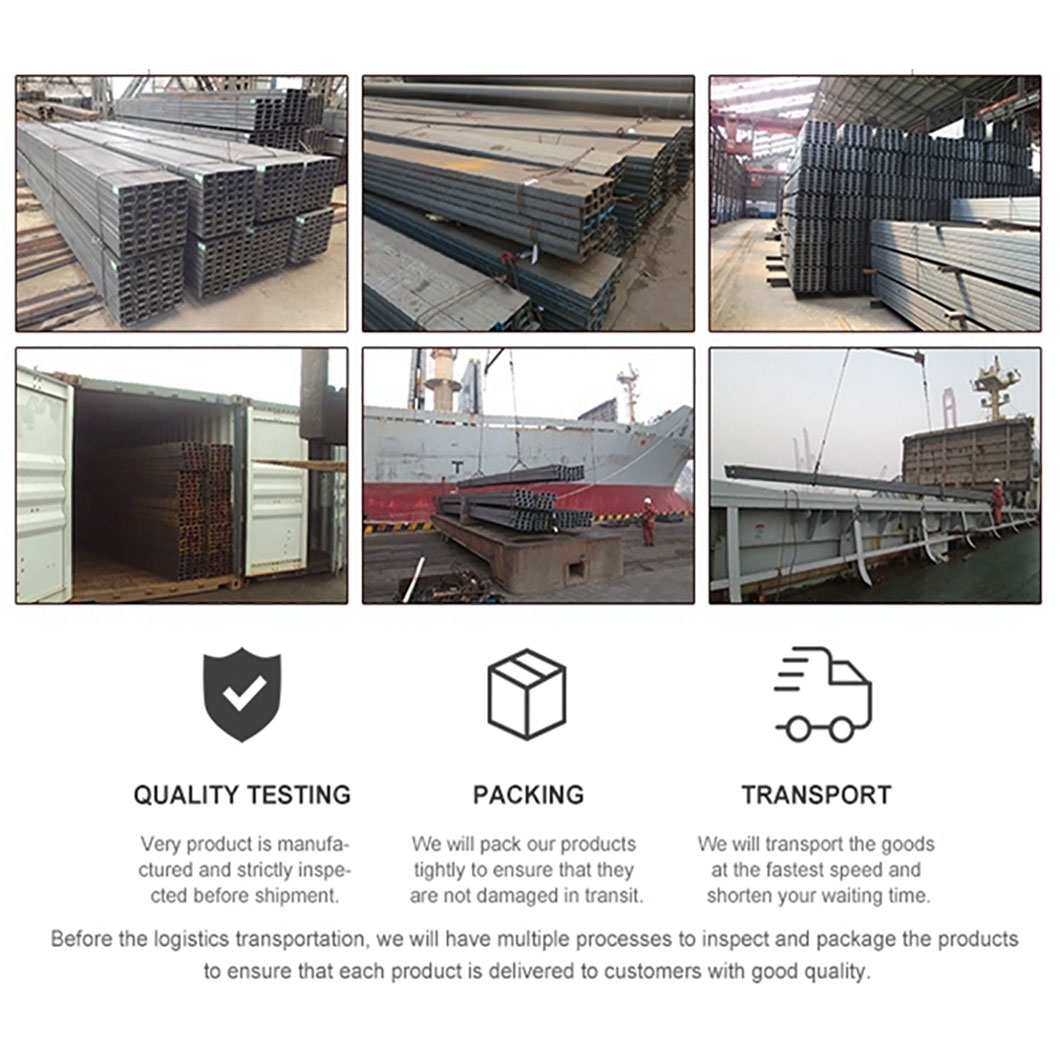

Packaging Transportation

Q1:Can I get samples before order ?
A:Yes, of course. Usually our samples are free,we can produce by your samples or technical drawings.
