Threaded Flange

A threaded flange is a mechanical component that achieves non-welding connection with a threaded pipe through a pipe thread processed through an inner hole.
  • Threaded Flange
  • Threaded Flange
  • Threaded Flange
  • Threaded Flange
  • Threaded Flange
  • Threaded Flange

Description

Threaded Flange Supplier,Threaded Flange Manufacturer In China

  A threaded flange is a mechanical component that achieves non-welding connection with a threaded pipe through a pipe thread processed through an inner hole. It is a detachable connection method. Its core advantage is that it is easy to install and maintain. It is especially suitable for alloy steel pipeline systems where welding is prohibited and special material connection scenarios with poor welding performance. It can effectively avoid additional stress caused by welding deformation. This type of flange has a risk of leakage in conditions where the temperature changes drastically (below -45°C or above 260°C) and should be used with caution. As a high-pressure pipeline connection solution, threaded flanges are mainly used in special material pipeline systems in the chemical, petroleum and other fields. The sealing surface types include raised faces and flat faces.

ANSI B16.5 Forged Treaded Flanges Tolerance

THREAD,SOCKET-WELDING,SLIP-ON,LAP JOINT AND BLIND FlANGE WELDING NECK
Outside
Diameter
When O.D.is
24"or less
±1/16"(1.6mm) Outside
Diameter
When O.D.is
24"or less
±1/16"(1.6mm)*
When O.D.is
Over  24"
±1/8"(3.2mm)* When O.D.is
Over  24"
±18"(3.2mm)
Inside
Diameter
Threaded Within limits on
boring gauge
Inside
Diameter
10"and Smaller ±1/32"(0.8mm)
20"thru 18" ±1/16"(1.6mm)
Socket-Welding
Slip-on and
Lap joint
10"&Smaller
+1/32"(0.8mm).0"
12"&Larger
+1/16"(1.6mm).O"
20"and Larger +1/8"(3.2mm)
-1/16"(1.6mm)
Outside
Diameter
of Hub
5"and Smaller +3/32"(2.4mm)
-1/32"(0.8mm)
Diameter
of Hub
at Base
When Hub Base is
24"or Smaller
±1/16"(1.6mm)*
6"and Larger +5/32"(4.0mm)
-1/32"(0.8mm)
When Hub Base is
Over  24"
±1/8"(3.2mm)*
Diameter
of Contact
Face
1/16"Raised Face ±1/32"(0.8mm) Diameter
of Contact
Face
116"Raised Face  ±1/32"(0.8mm)
1/4"Raised Face Tongue & Groove
Male,Female
±1/64"(0.4mm) 14"Raised Face
Tongue &Groove
Male,Female
±1/64"(0.4mm)
Diameter
of
Counterbore
Same as for Inside Diameter Diameter of
Hub at Point
of Welding
5"and Smaller +3/32"(2.4mm)*
-1/32"(0.8mm)
6"and Larger +5/32"(4.0mm)
-1/32"(0.8mm)
Drilling Bolt Circle ±1/16"(1.6mm) Drilling Bolt Circle ±1/16"(1.6mm)
Bolt Hole Spacing ±1/32"(0.8mm) Bolt Hole Spacing ±1/32"(0.8mm)
Eccentricity of
Bolt Circle with
Respect to Facing
21/2"Smaller
1/32"(0.8mm)Max.
3"&Larger
1/16"(1.6mm)Max
Eccentricity of
Bolt Circle with
Respect to Facing
21/2"Smaller
1/32"(0.8mm)Max.
3"&Larger
1/16"(1.6mm)Max.
Eccentricity of
Bolt Circle with
Respect to Bore
1/32"(0.8mm)Max.* Eccentricity of
Bolt Circle with
Respect to Bore
1/32"(0.8mm)Max.*
Eccentricity of
Facing with
Respect to Bore
1/32"(0.8mm)Max.* Eccentricity of
Facing with
Respect to Bore
1/32"(0.8mm)Max.*
Thickness 18"and Smaller +1/8"(3.2mm).0^ Thickness 18"and Smaller +1/8"(3.2mm),0"
20"and Larger +3/16"(4.8mm).04 20"and Larger +3/16"(4.8mm).O
Length
Thru Hub
10"and Smaller ±1/16"(1.6mm) Length
Thru Hub
10"and Smaller ±1/16"(1.6mm)
12"and Larger ±1/8"(3.2mm) 12"and Larger ±1/8"(3.2mm)

Product Description

Flange Standard Flange Size Flange Pressure Flange Type
ANSI B16.5 1/2'-24' Class150 Class300 Blind Plate Slip onWelding Neck
ASME B16.5   Class600 Class900 Socket weling Threaded RTJ(tring type joint )
ASA B16.5   Class1500 Class2500 Facing: FF (flat face) RF (raised face)
ANSI B16.47 (A) 1/2'-60' Class150,300 Slip on Welding neck RTJ(ring type joint)
    Class400,600,900 Facing: FF (flat face) RF (raised face)
ANSI B16.5 (B) 26'-60' Class75,150,300 Slip on Welding neck RTJ(ring type joint)
      Facing: FF (flat face) RF (raised face)
ANSI B16.36 1"-24" Class300,400,600 Slip on Welding neck Threaded RTJ
    Class900,1500,2500 Facing: FF (flat face) RF (raised face)
EN1092-1 Type01 DN10-DN2000 pn6 pn10 pn16 pn25 pn40 Plate flange
EN1092-1 Type05 DN10-DN3000 pn6 pn10 pn16 pn25 pn40 Blind flange
EN1092-1 Type11 DN15-DN3000 pn6 pn10 pn16 pn25 pn40 Welding neck flange
EN1092-1 Type13 DN10-DN150 pn6 pn10 pn16 pn25 pn40 Threaded flange
EN1092-1 Type02 DN15-DN1000 pn6 pn10 pn16 Loose flange
GOST 12820-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Plate flange
    pn2.5MPa 4.0MPa 6.4MPa FF(flate face) RF(raised face)
GOST 12821-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Welding neck flange
    pn2.5MPa 4.0MPa 6.4MPa FF(flate face) RF(raised face)
GOST 12836 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Blind flange
    pn2.5MPa 4.0MPa FF(flate face) RF(raised face)

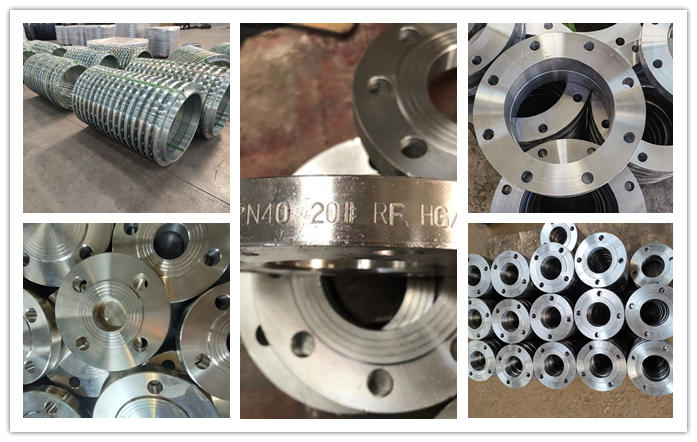

 Product Display




STOCK FINISH:

  The most widely used gasket finish.because practically is suitable for all ordinary service conditions. This is a continuous spiral groove. Flanges size 12" (304.8mm)and smaller are produced with a 1/16" round-nosed tool at a feed of 1/32" per revolution. For sizes 14" (355.6mm)and larger. the finish is made with a 1/8" round-nosed tool at a feed of 3/64" per revolution.

  SPIRAL SERRATED OR PHONOGRAPHIC:

  This finish is produced by using a 90°round-nosed tool.

  CONCENTRIC SERRATED:

  This finish is produced by using a 90°round-nosed tool.

  SMOOTH  FINISH:

  The cutting tool employed shall have an approximate 0.06"radius.

  The resultant surface finish shall have a 125μ inch to 250μ inch(ANSI B16.5 para 6.4;4.1)

  1. RAISED FACE AND LARGE MALE AND FEMALE

  A serrated-concentric or serrated-spiral finish with 34 to 64 grooves per inch is used.

  The cutting tool employed has an approximate 0.06 in.radius.The resultant surface finish shall have a 125μ inch(3.2m)to 500μ inch(12.5μm) approximate roughness.

  2. TONGUE AND GROOVE AND SMALL MALE AND FEMALE

  The gasket contact surface does not exceed 125μ in. (3.2μm)roughness

  3. RING JOINT

  The inside wall surface of the gasket groove does not exceed 63μin.(1.6μm)roughness,

  4. BLIND

  Blind flanges need not be faced in the center if, when this center part is raised, its diameter is at least 1 in. smaller than the inside diameter of the corresponding pressure class fittings. When the center part is depressed, its diameter is not greater than the inside diameter of the corresponding pressure class fittings. Machining of the depressed center is not required.
