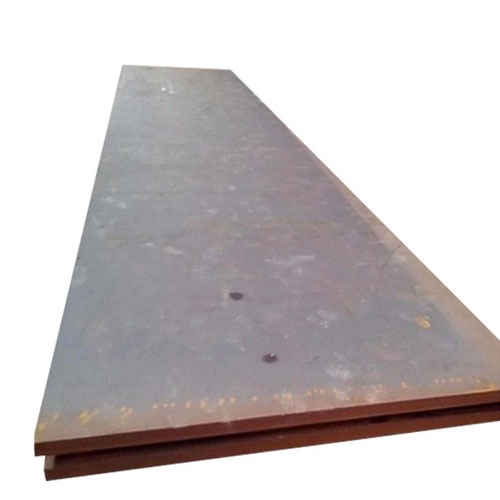

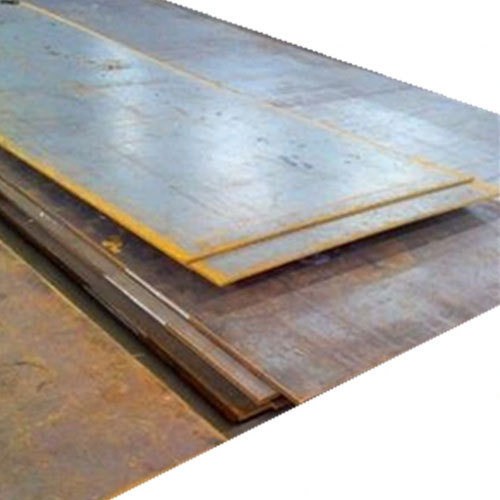

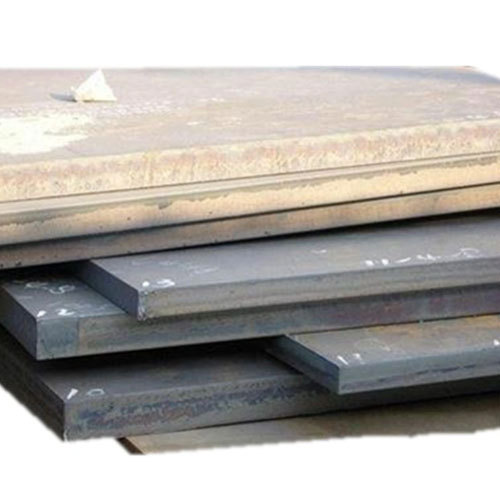

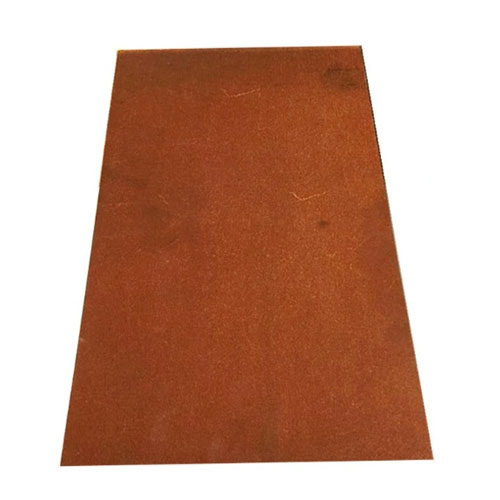

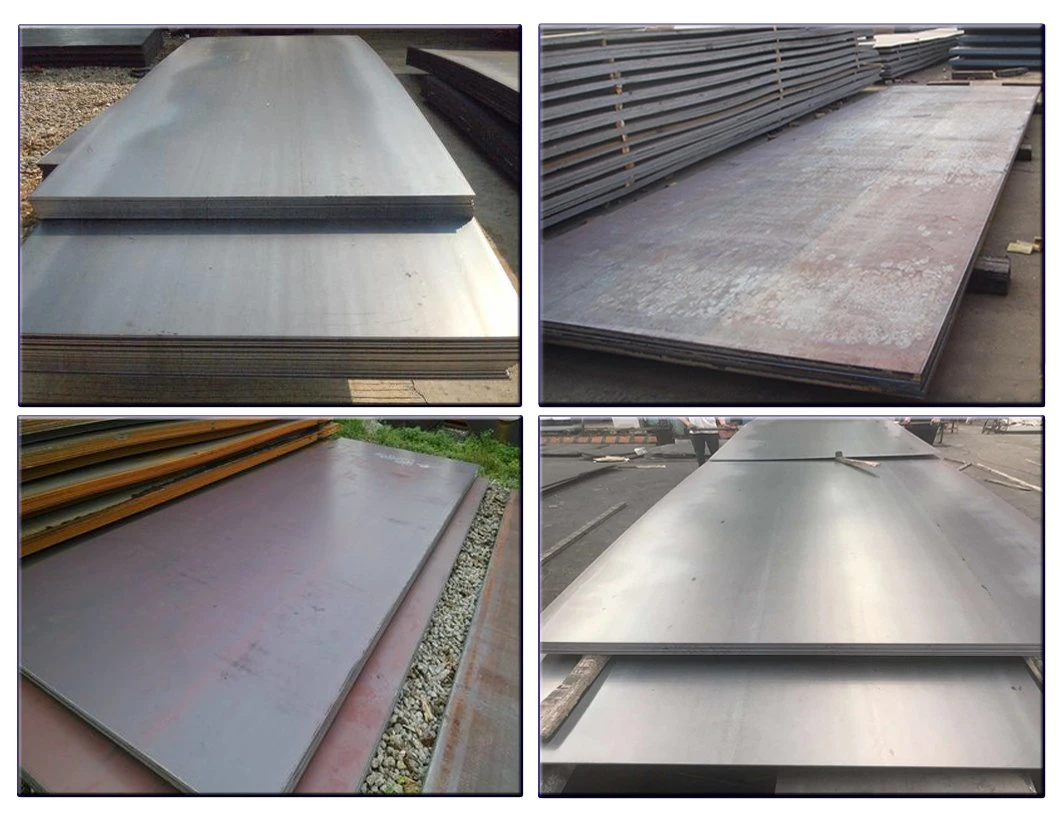

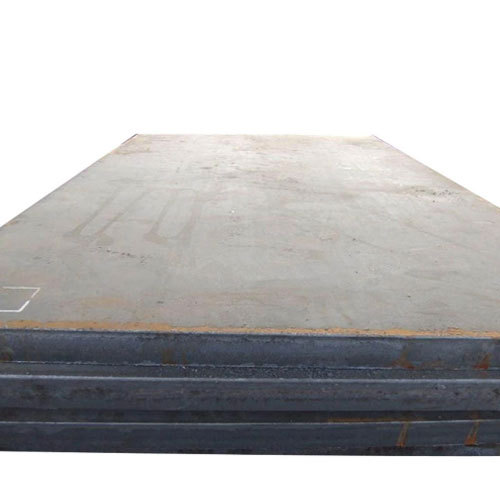

| Products | Corten Steel Plate |
| Standard grade |

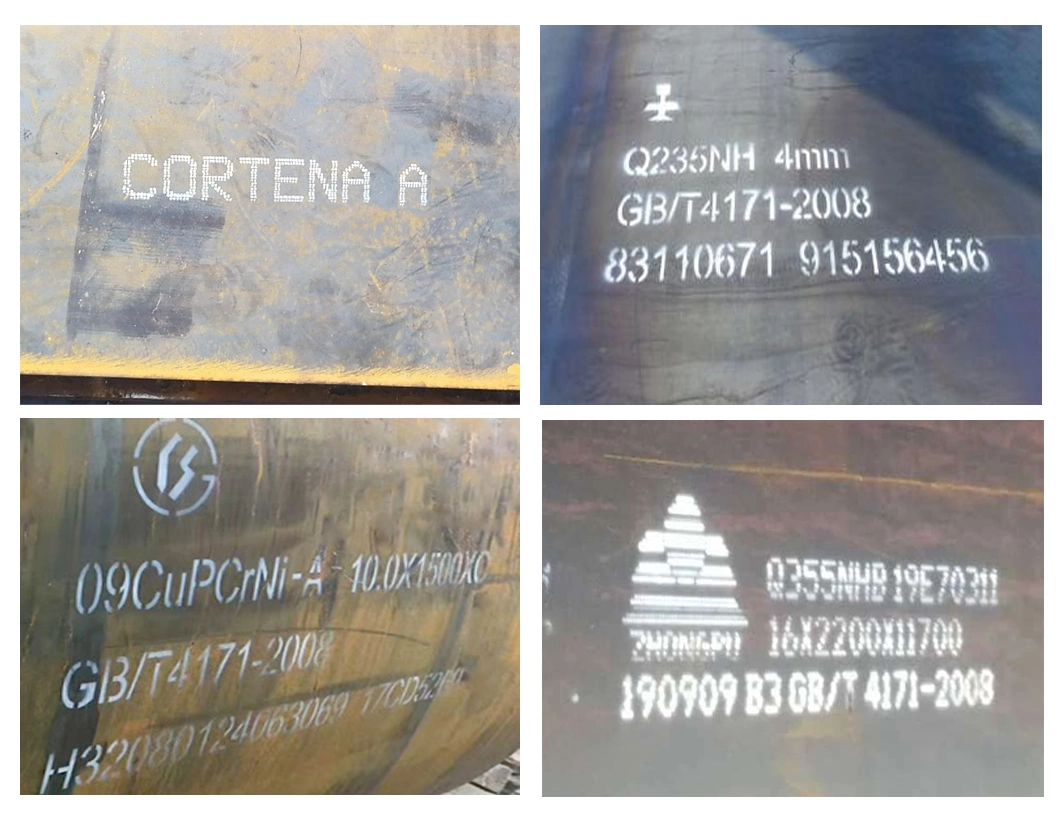

ASTM: Corten A; Corten B; A588Gr.A/Gr.B/Gr.C/ Gr.K; A242; A606 Type 4; A709 Gr 50W; |
| EN10025: S235J0W; S235J2W; S355J0W; S355J2W; S355K2W; S355J0WP; S355J2WP; S355J2G1W; S355J2G2W; S355K2G1W, S355K2G2W; |
|
| JIS G3114: SMA400AW; SMA400BW; SMA400CW; SMA490AW; SMA490BW; SMA490CW; SMA570W; SMA570P; |
|
| JIS G3125: SPA-H; SPA-C; | |
| GB/T 4171: Q235NH; Q265GNH; Q310GNH; Q295NH; Q295GNH; Q355NH;Q355GNH; Q415NH; Q460NH; 1500NH; Q550NH; |
|
| TB/T 1979: 09CuPCrNi-A; 09CuCrNi-B; 05CuPCrNi; | |
| Q/BQB 340: B460NQR; B490NQR; B480GNQR; B600GNQR; | |
| Thickness | Cold Rolled 0.5-2mm Hot Rolled 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer requirement |

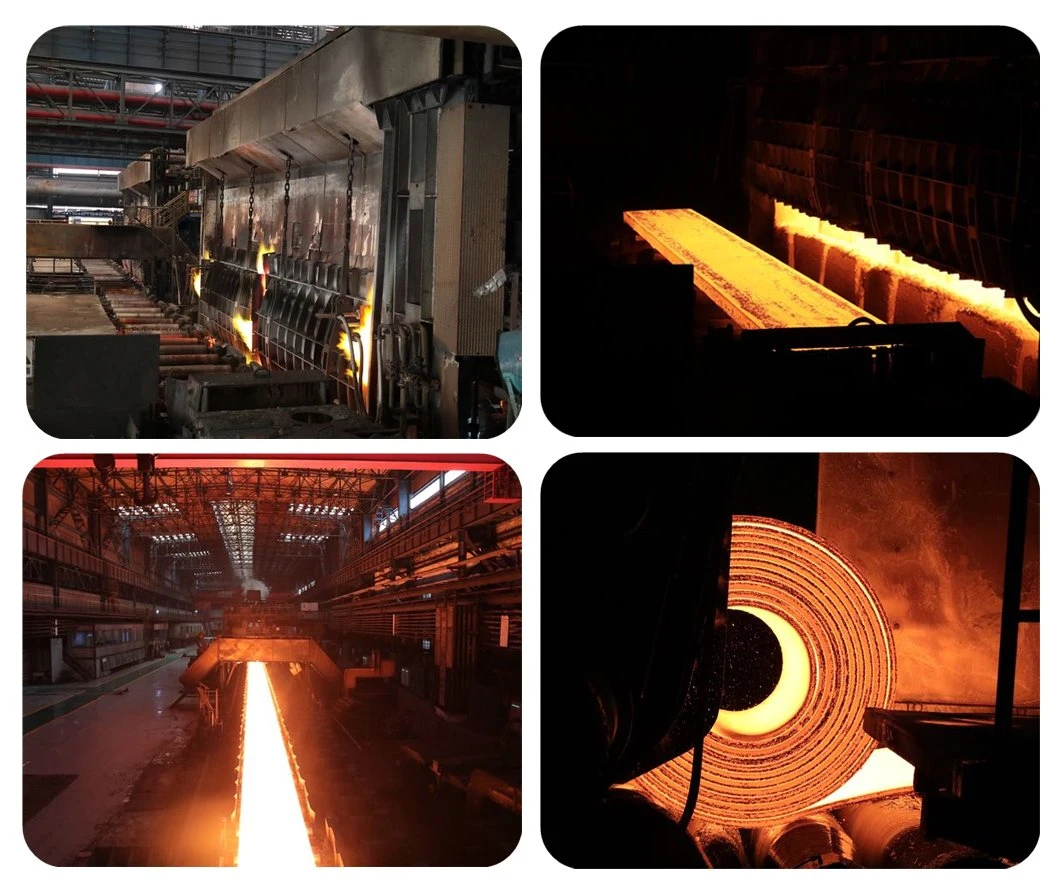

| Process | Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required |
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS. |

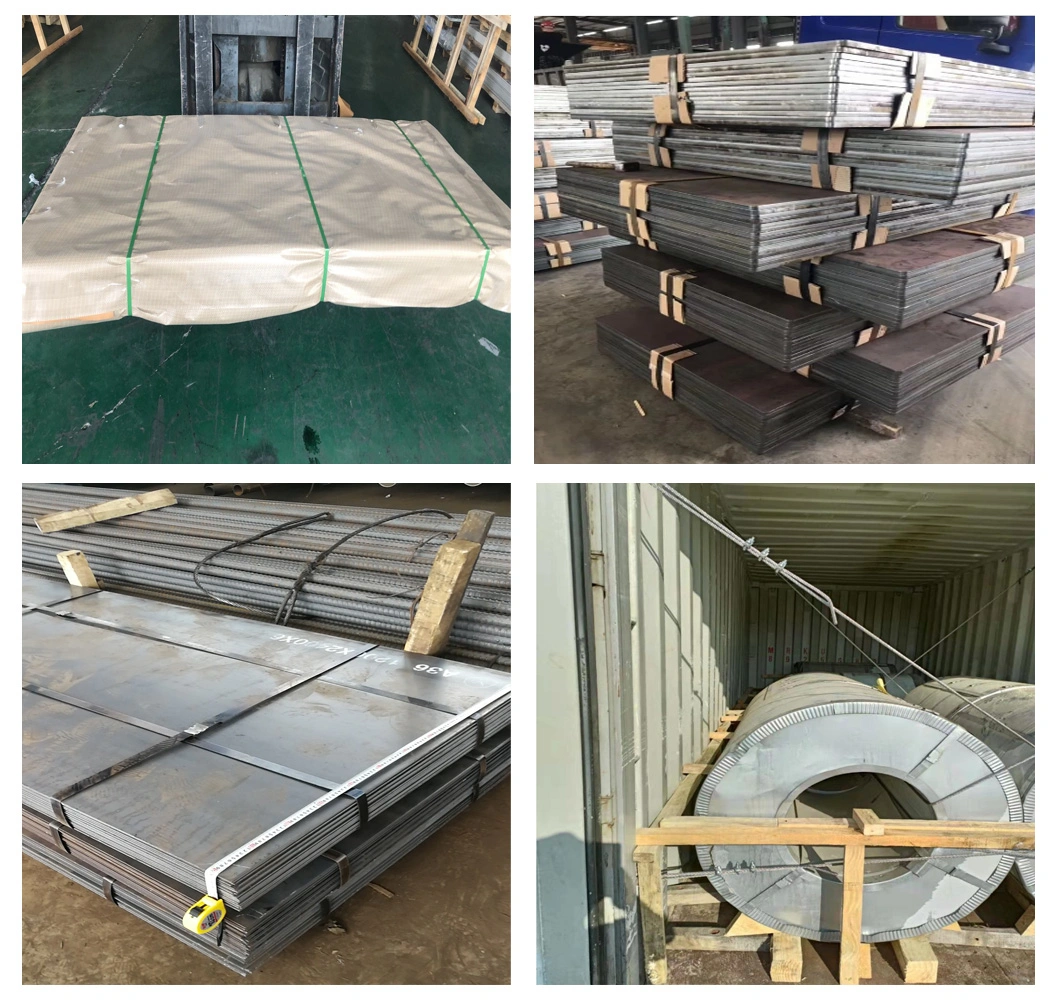

| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | |
| Trade term | Ex-Work,FOB,CNF,CFR,CIF,etc |

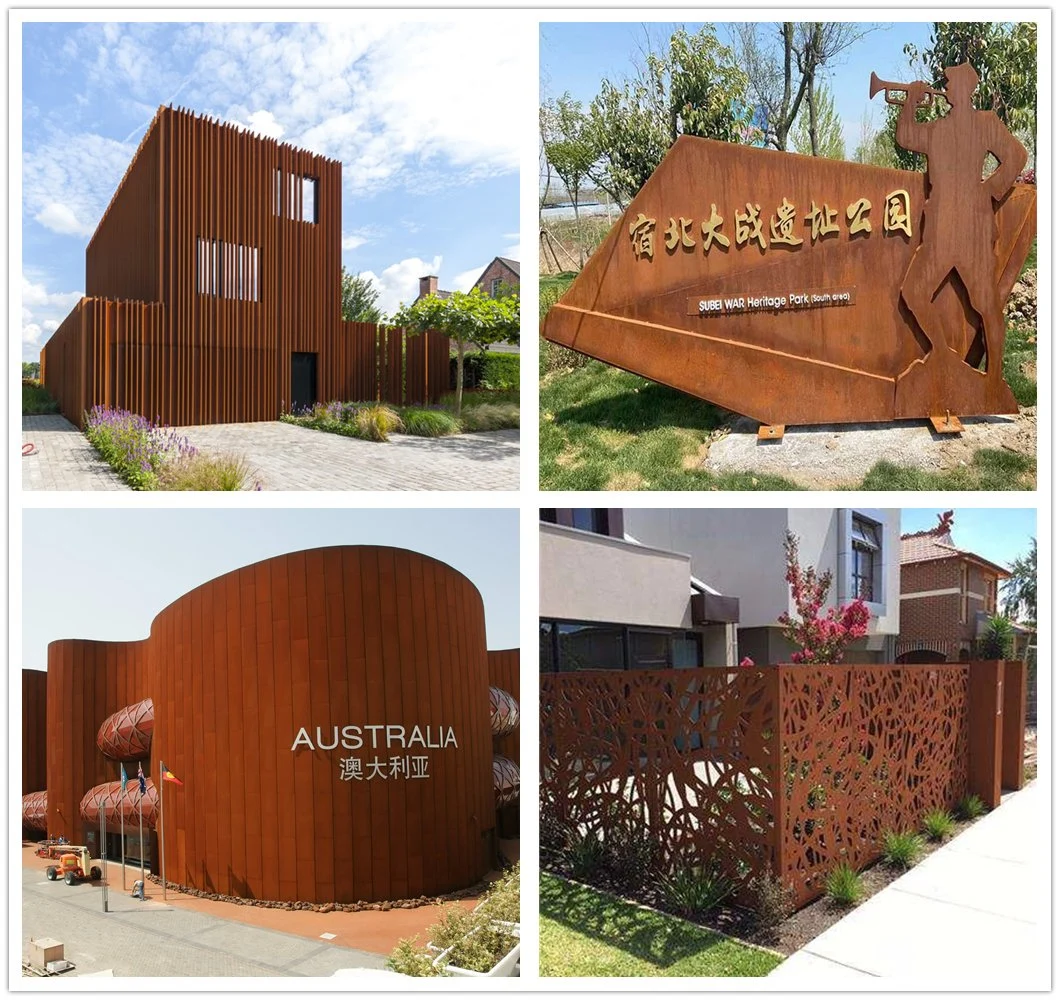

| Application | Widely used in a variety of architectural and engineering structures,such as |
| 1.) metal constructions such as buildings,bridges,ships; | |
| 2.) transmission tower, reaction tower; | |
| 3.) lifting transportation machinery; | |
| 4.) industrial furnace;boilers | |
| 5.) container frame, warehouse goods shelves, etc |
| Corten Steel Plate Chemical Composition and Mechanical Properties | ||||||||
| Grade | C | Si | Mn | P | S | Cr | Ni | Cu |
| CORTEN A | ≤0.12 | 0.25-0.75 | 0.20-0.50 | 0.07-0.15 | ≤0.030 | 0.50-1.25 | ≤0.65 | 0.25-0.55 |
| CORTEN B | ≤0.16 | 0.30-0.50 | 0.80-1.25 | 0.03 | ≤0.030 | 0.40-0.65 | 0.4 | 0.25-0.40 |
| Yield Strength MPA | Tensile Strength MPA | Elongation % | ||||||
| Grade | ||||||||
| CORTEN A | ≥355 | 470-630 | ≥20 | |||||
| CORTEN B | ≥345 | 470-630 | ≥20 | |||||
| Grade | C | Mn | Cr | Si | N | S | Cu | P | Ni | V |
| A588GrA | ≤0.19 | 0.80-1.25 | 0.40-0.65 | 0.30-0.65 | ≤0.010 | 0.05 | 0.25-0.40 | 0.04 | ≤0.40 | 0.01-0.10 |
| A588GrB | ≤0.20 | 0.75-1.35 | 0.40-0.70 | 0.15-0.50 | ≤0.010 | 0.05 | 0.20-0.40 | 0.04 | ≤0.50 | 0.01-0.10 |
| A588GrC | ≤0.15 | 0.80-1.35 | 0.30-0.50 | 0.15-0.30 | ≤0.010 | 0.05 | 0.20-0.50 | 0.04 | 0.25-0.50 | 0.01-0.10 |
